Reliable Power Distribution for Global Industrial Applications
The FORK-4P K Series Copper Electric comb Busbar is solution for safe and reliable comb busbar. It is made for 4 poles devices, rated at 40A, 63A, 80A,100A and it has 12 modules and 56 modules. This product benefits from Chaer with more than 25 years developing modular devices for commercial and industrial applications. Quickly and safely build your main distribution board with a reliable and safe comb busbar from Chaer. 40A, 63A, 80A,100 A current rating, can fit the most demanding applications. Ideal for 4 phase installations. Insulated comb busbar to protect users against electric shocks and installation against arc flash faults. The pollution degree is 3. It complies with CE, CB, UL, RoHS and other global quality and environmental standards.
Application:
Our company produces almost all kinds of busbars for MCB, Engineered for reliability, safety, and scalability, It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box, switchgear and panel systems and so on.
Advantage:
1. High-Quality Copper Conductor · Lower Power Loss
Uses high-purity electrolytic copper (conductivity ≥99.9%) for superior electrical performance.
Ensures more efficient energy utilization, lower heat generation, and environmental sustainability.
2. Modular Design · Flexible & Easy Installation
Compact structure saves space and fits various switchgear and panel systems.
Plug-and-play connection simplifies on-site wiring and reduces labor costs.
Easy to maintain and upgrade, meeting the fast-changing demands of modern projects.
3. High-Level Insulation Protection · Safer to Use
Housing made of high-strength, flame-retardant insulating material; resistant to high temperatures and electric arcs.
Complies with international insulation standards.
Provides safe isolation to effectively prevent accidental contact, electric shock, and short circuits.

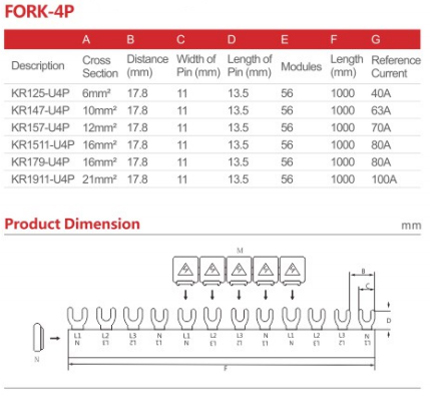

| Main | ||||||
| Component Type | Comb busbar | |||||
| Item | KR125-U4P | KR127-U4P | KR147-U4P | KR157-U4P | KR179-U4P | KR1911-U4P |
| Mounting Mode | Horizontal | |||||
| Accessory / separate part category | Connection accessory | |||||
| Number of modules | 12 or 56 modules | |||||
| Complementary | ||||||
| Distribution type | L1 L2 L3 N | |||||
| Poles configuration for 1 way | 1 x 4P | |||||
| Connection pitch | 0.7 in (17.8 mm) | |||||
| Connector type | Tooth | |||||
| Width of pin | 4mm | |||||
| Marking | L1 L2 L3 N | |||||
| Insulation | Insulated | |||||
| Device presentation | Cuttable | |||||
| [Ie] rated operational current | 40A | 50A | 63A | 70A | 80A | 100 A |
| Cross - Section(mm2) | 6 | 8 | 10 | 13 | 16 | 20 |
| Thickness(mm) | 1.2 | 1.2 | 1.4 | 1.5 | 1.7 | 1.9 |
| [Ue] rated operational voltage | 240/415 V AC | |||||
| [Ui] rated insulation voltage | 500 V AC | |||||
| Material of insulation | Fire-resistant PVC | |||||
| Material of conductor | Pure copper | |||||
| Mounting location | Top or bottom tunnel type terminals | |||||
| Top or bottom double terminal | ||||||
| Width | 8.7 in (220 mm) or 1meter (Other length can be customized) | |||||
| color | White | |||||
| Contractual warranty | ||||||
| Warranty | 12 months | |||||
| Certification | ||||||
| Certification | CE, ROHS, ISO, SGS, MSDS, LVD TEST REPORT | |||||
