TS32 Steel Mounting Rail G Type

Name: TS32 Steel Mounting Rail G Type
Brand: CHAER
SKU: 00143
Rating: 4.1 (122 reviews)

Product Description

Product Overview

The TS32 Steel Mounting Rail G Type redefines reliability in industrial mounting solutions, built to withstand the toughest environments while delivering unmatched performance.

Certified Excellence – Compliant with CE | RoHS | SGS | REACH | ISO9001 standards, ensuring top-tier quality and safety.
Versatile Sizing – Available in 1M & 2M standard lengths, with custom lengths available for specialized needs.
Ultra-Durable Construction – Military-grade corrosion resistance for extreme conditions, from factories to outdoor installations.
Engineered for Precision – Robust design for seamless integration in automation, power systems, and smart infrastructure.

Application

Energy & Power Systems – Reliable support for electrical enclosures and cabling.
Smart Infrastructure – Durable backbone for IoT and smart city deployments.

General Date
Component Type	Din Rail
Item	TS32 Steel Mounting Rail G Type
Dimensions and Weight
Depth	15/9mm
Height	33mm
Width	1mts or 2mtrs
Mounting Rail
Drill-hole diameter	6.2mm
Installation advice	Direct mounting
Length of rail(other length can be customized)	Nominal	1mtr
	Max.	2mtrs
	Min	0.1mtr
Material	Steel
Pre-punched mounting rail	Yes
Short circuit strength corresponds to E-Cu wire	16 mm²
Short-time withstand current per second according to IEC 60947-7-2	1.92 kA
Slit gap	10mm
Slit length	15mm
Slit width	6.2mm
Slotted drill holes	Yes
Solder eyelet hole diameter (D)	6.2mm
Spacing of holes, centre-to-centre	25mm
Standards	DIN EN 60715
Surface finish	Galvanic zinc plated and passivated
Zinc layer thickness	3-5um(other thickness can be customized)
Color appearance	Colored or Silver
Thickness	1.2mm
Temperatures
Ambient temperature	-5℃- 40℃
Warranty
Warranty	12 months
Certification
Certification	CE, ROHS, REACH, ISO, SGS

Support OEM & ODM

• Special lengths (0m-2m)

• Enhanced protective coatings

• Laser-etched identification marks

• Private labeling & branding

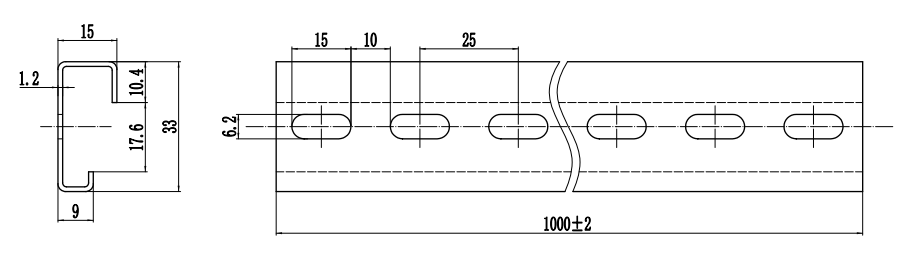

Main Technical Parameters
