TS35（upgrade）Steel Mounting Rail K-9600

Product Description

Product Overview

The TS35 (upgraded version) K-9600 series redefines industrial installation standards with the new generation of steel guide rail technology, integrating military-grade durability and precision engineering, providing the ultimate solution for critical infrastructure applications.

Authoritative certification - Complies with CE | RoHS | SGS | ISO9001 | IEC 60715 international standards - Fully meets the dual requirements of safety and performance
Precise dimensions - Standard 1m / 2m lengths (tolerance ±0.15mm), ensuring perfect alignment of the rack system
Super protection - Three-layer zinc-nickel alloy coating (≥25μm)
Customized Service - Supports special length customization to meet personalized deployment requirements
Structural strength - Made of 45# high-quality carbon steel, with a tensile strength of up to 580MPa, it has an outstanding load-bearing capacity
The new appearance is more applicable

Application

Whether in the fields of industrial automation, power distribution or intelligent buildings, the K-9600 series can provide you with more stable and durable installation solutions. From factory floors to smart cities, the K-9600 Series provides the robust foundation professionals demand. Contact our application engineers to optimize your rail solution.

General Date
Component Type	Din Rail
Item	K-9600
Dimensions and Weight
Depth	7.5mm
Height	35mm
Width	1mts or 2mtrs
Mounting Rail
Drill-hole diameter	5.2mm
Installation advice	Direct mounting
Length of rail(other length can be customized)	Nominal	1mtr
	Max.	2mtrs
	Min	0.1mtr
Material	Steel
Pre-punched mounting rail	Yes
Short circuit strength corresponds to E-Cu wire	16 mm²
Short-time withstand current per second according to IEC 60947-7-2	1.92 kA
Slit gap	10mm
Slit length	15mm
Slit width	5.2mm
Slotted drill holes	Yes
Solder eyelet hole diameter (D)	5.2mm
Spacing of holes, centre-to-centre	25mm
Standards	DIN EN 60715
Surface finish	Galvanic zinc plated and passivated
Zinc layer thickness	3-5um(other thickness can be customized)
Color appearance	Colored or Silver
Thickness	0.8mm
Temperatures
Ambient temperature	-5℃- 40℃
Warranty
Warranty	12 months
Certification
Certification	CE, ROHS, REACH, ISO, SGS

Support OEM & ODM

• Special lengths (0m-2m)

• Enhanced protective coatings

• Laser-etched identification marks

• Private labeling & branding

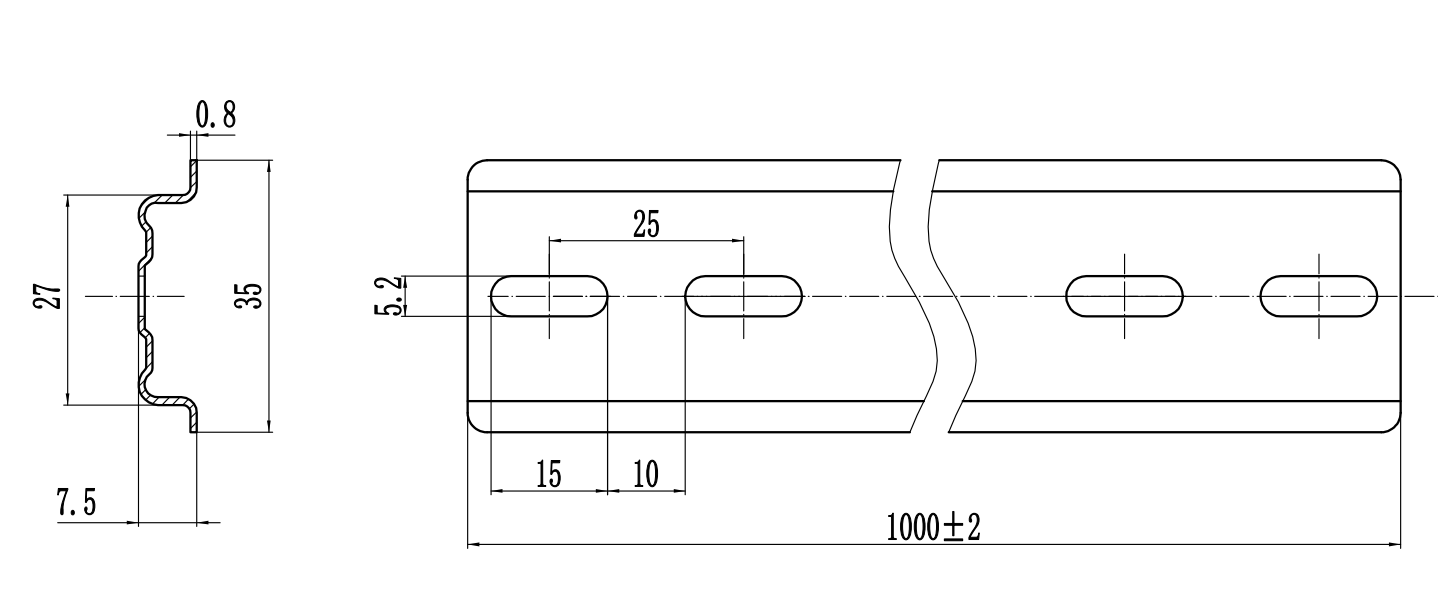

Main Technical Parameters
